Well you can only be on this site for so long before you look at some of the mods Devious has done and start to wonder to yourself "why not?". Such was the case this spring. I think the day that finally put me over the edge was the AMA Superbike opener, Up here it means spring will be here soon. Gathering parts was easy.

Zard slip-on $400 (Trat groupbuy)
SAI block off plates $100 (Many thanks to Kulhka)
Tuneboy $396 (www.newspeed3.com)
Carbide burr $30 (Ace hardware)
K&N filter $45 (steiger powersports)
Ceramic coating $100 (K&A Coatings)

Total cost: $1071


As I waited for parts to start arriving I decided I'd try my hand at porting the headers and take out the pre-cat and SAI.


·
Registered
Joined
·
4,658 Posts
Dfib said:
Zard slip-on $400 (Trat groupbuy)
SAI block off plates $100 (Many thanks to Kulhka)
Tuneboy $396 (www.newspeed3.com)
Carbide burr $30 (Ace hardware)
K&N filter $45 (steiger powersports)
Ceramic coating $100 (K&A Coatings)

Total cost: $1071
The feeling of making your bike faster all by yourself - PRICELESS


·
Registered
Joined
·
8,252 Posts
Discussion Starter · #3 ·
Day 1: Disassembly

Plastic and tank off (easy stuff so no need to write too much here)
Airbox removed (I always forget that dang screw right in the middle and look like a moron trying to pull the airbox cover off!
Stock midpipe and cans removed.
Screws holding the radiator and oil cooler removed. (I found it way easier to work on the header bolts by removing the support brackets for the radiator and oil cooler too.)
Header unbolted and removed. (that went so well I was begining to wonder what catastrophic pailure was in the future)

Here is a pic of the SAI system under the airbox:


I unplugged the solenoid and took the reed covers and reeds off. Put the block off plates on. Here's a pic of the block off plates in action.


I'm amazed looking at the bike now how much room the SAI took up under the airbox... I have to believe there is better airflow with it out of there, but without actual testing I'll never know.


·
Registered
Joined
·
8,252 Posts
Discussion Starter · #4 ·
Day 1: Header porting

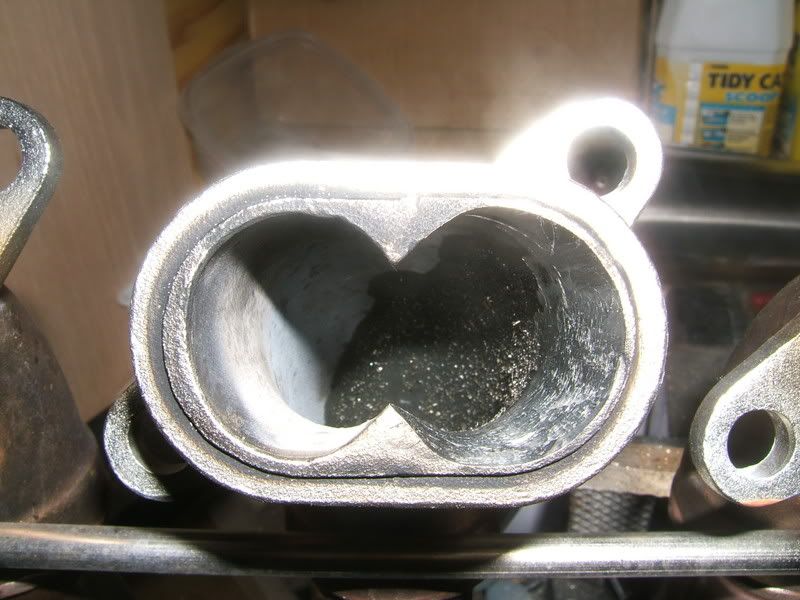

OK deep breath here I go. I used the carbide burr I had gotten to start removing material on the header. HOLY SHIT those burrs remove A LOT of metal! Here's a pic of one in the works:

The right side has been attacked the left is waiting for it's turn. The burr left some ridges inside which were cleaned up with sanding rolls.


·
Registered
Joined
·
8,252 Posts
Discussion Starter · #5 ·
Day 1: Pre-cat removal:

After porting the headers I got ready to pull the pre-cat.
Actually this was by far the easiest and least time consuming job in the whole project.
Using a 1/4" drill bit I drilled out 3 of the 4 studs holding the pre-cat in.  Next I beat the remaing stud a little with an air chisel (not necessary, but air tools are fun dangit!)

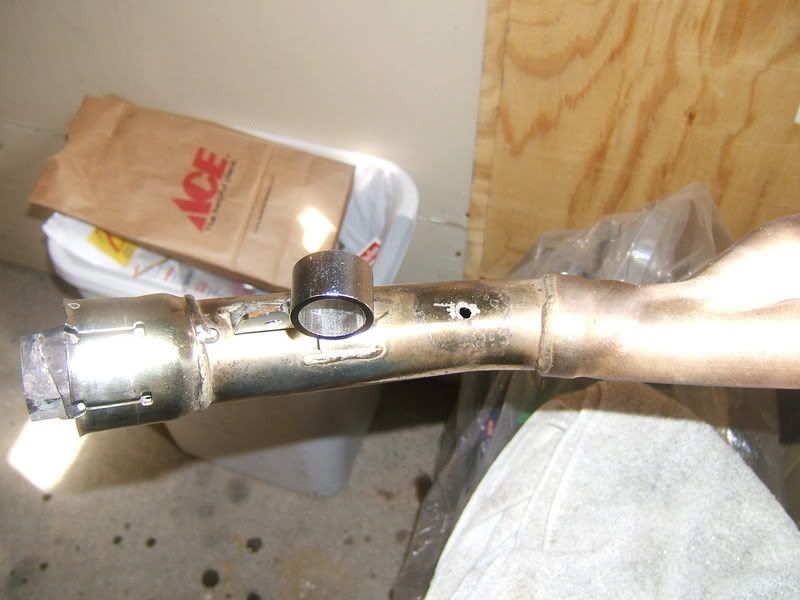

Here's the drill hole on the pipe:
